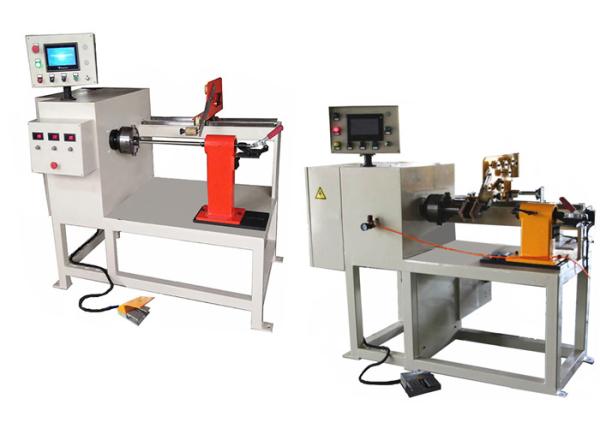

400mm Height Coil Transformer Coil Winding Machine With PLC Based Control System

Description

400mm Height Coil Transformer Coil Winding Machine With PLC Based Control System ZPX400 can

• lay wire automatically
• wind copper or aluminium wire
• wind flat or round wire
• wing different shape of wire coil, such as circle, oval and rectangular etc.
• count the turns, the range is from 0 to 9999.99
• revert counting
• wind with different speed, just through adjusting the potentiometer on the board
• set spread pitch between turns
• start slowly, at the beginning of running machine, the rotating speed will rise gradually till to the normal speed, the duration can be preset, from 0 seconds to 5 seconds

Main Feature

• Occupying small space, this machine is mainly used to wind small coil, the volume is small
• Setting parameters is very easy, the parameters can be input through the touch screen
• Easy to operate, just inputting the relevant parameters, the machine can winding automatically as per the parameters
• The winding speed can be adjusted through a potentiometer on the screen board
• Spread pitch between turns can be preset, the minimum is 0.01mm
• Strong pulling force, 1.5kw motor is enough to winding the wire coil
• Automatic laying the wire, a 0.75kw servo motor driven wire guide to arrange the wire precisely
• The wire decoiler can provide a proper tension to make the wound coil tight
• The tension can be adjusted through a valve
• The tension can be shown on a pressure gauge

Main Parameters

Typical standard specifications of ZPX400 are shown below, however these can be easily modified as requested.
